1932 Ford Köln Model B

Ford Garage

Industrial Engine Brochure

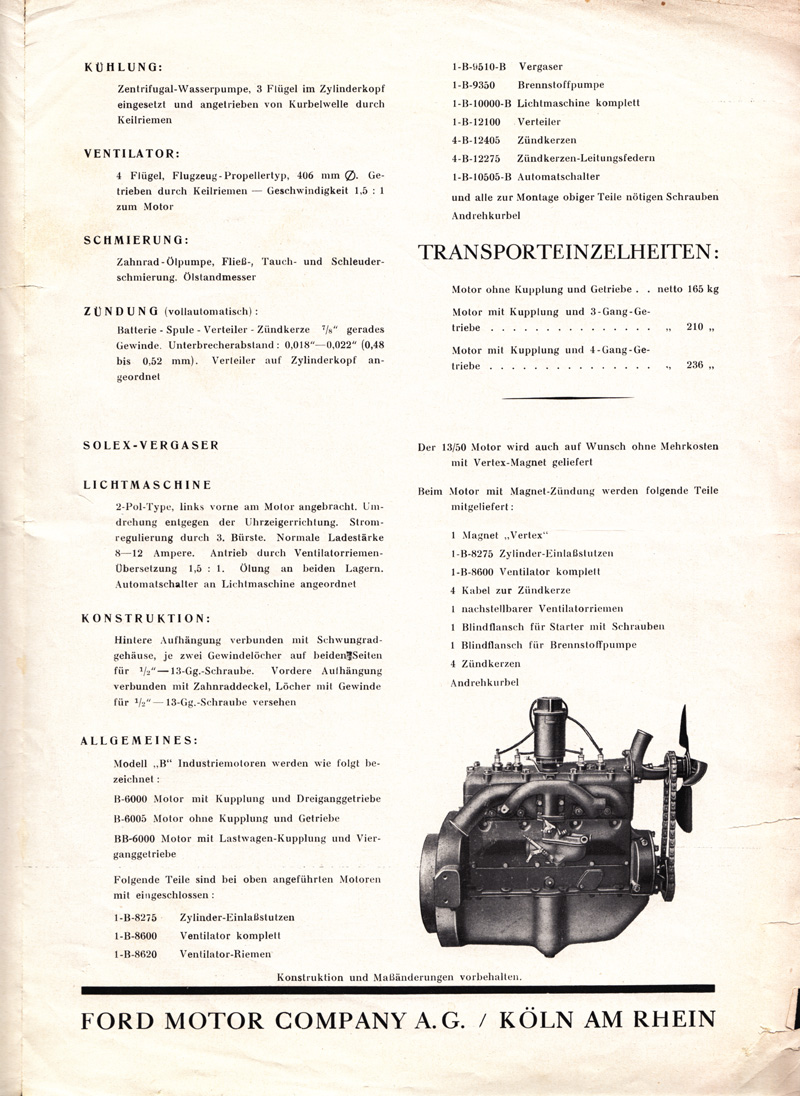

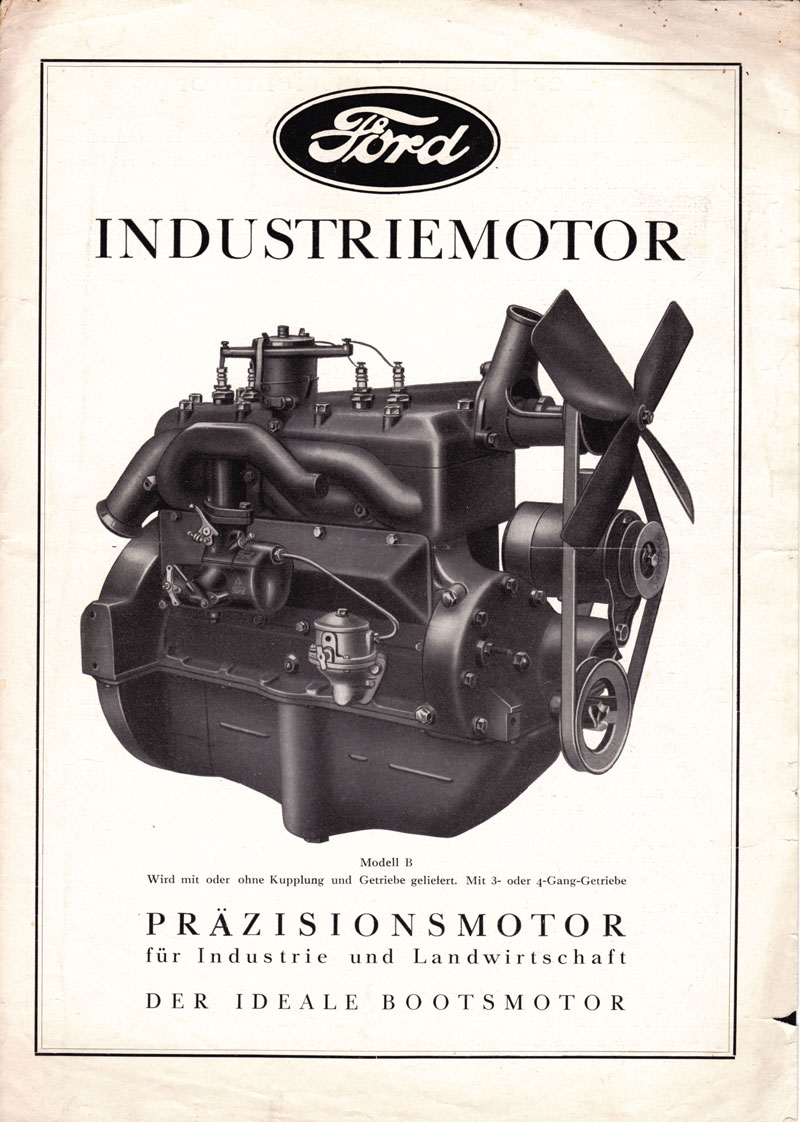

The following images are from the German 1932 Ford Köln Model B industrial engine brochure. These were factory complete run-off engines.

The complete engine dimensions and performance characteristics are provided.

Click images for a larger view!

One available configuration of the engine illustrated above featured the use of a Vertex magneto, as well as a Model A Zenith carburetor rather than a Model B Zenith.

Also note the fan belt style, and that there was no fuel pump and no generator. Presumably this configuration was intended for use without a battery, and was to be hand cranked.

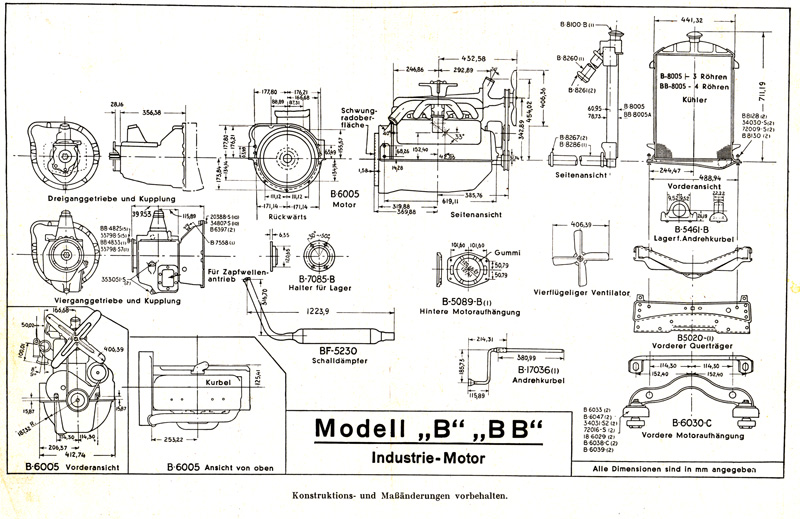

Shown in the images are all the important weights and measures of the Model B engine and its mounting provisions.
