British 1928 Model AF

Instruction Book

Ford Garage

This is the Instruction Book for the British 1928 Model AF Ford. The Model AF is the small displacement 3 inch bore engine, and is a right hand drive model.

Note the Ford Motor Company of England location is Trafford Park, Manchester, not London. This also pre-dates the opening of the manufacturing complex at Dagenham.

Note the multiple disc cutch and single brake system.

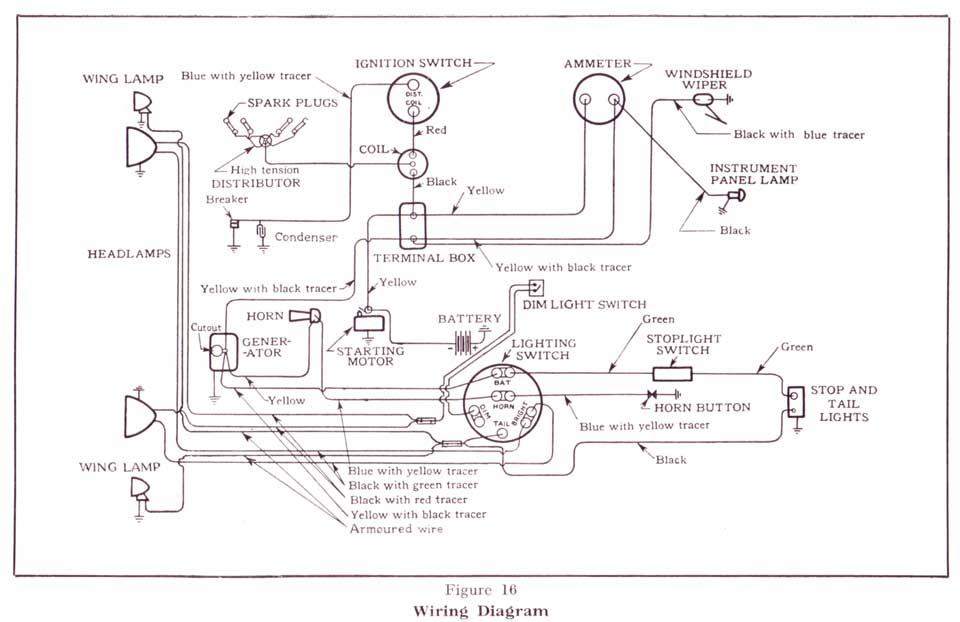

This early 1928 Instruction Book also shows such early features as the early light switch, early rear pinion gear with threaded driveshaft, double venturi carburetor, and cowl mounted brake handle.

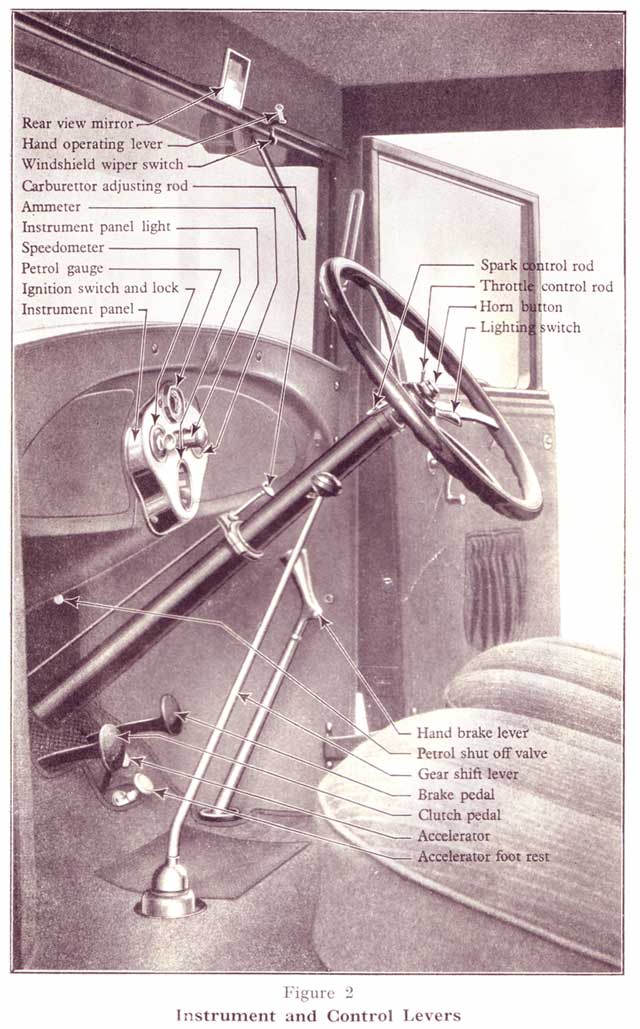

Note RH cowl parking brake lever.

Click image for a larger view!


November 2006
